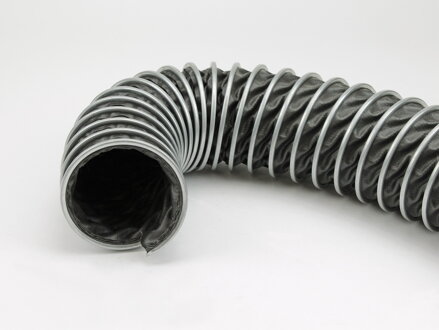

KLIN Lutniovinyl A

KLIN Lutniovinyl A

Product rating: Not rated yet. Be first!

Your rating:

Gas

Very flexible antistatic hoses KLIN Lutniovinyl A with good chemical resistance, used in extraction and ventilation systems in explosion hazard areas for removing air, dust, smoke or welding fumes.

15,50 € incl. VAT

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - air

Used for gaseous media

Antistatic

Antistatic - resistance <106 Ω

chemical resistance

Chemically resistant

Temperature resistance

Temperature resistance -10°C up to +80°C

UV reststant hose UV reststant
Incombustible hose

Incombustible acc. to ISO 6940

Flexibility

Flexibility ★★★★★



Axially compressible Axially compressible 1:6
lenght

Standard length: 10m

Packing system for standard e-shop orders:

DN 80÷180mm - 1pc = up to 10m

DN 181÷1150mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the standard length, it is not possible to return the goods.

KLIN Lutniowinyl profile



Technical parameters

Application

exhaust of air and gases in potentially explosive areas

extraction of smoke, chemical fumes or vapors

for applications with high-class flammability requirements

for transmission of hydrolysis media

in ventilation and exhaust systems

Wall material PES fabric covered on both sides with PVC
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner diameter [mm] Outer diameter [mm] Bending radius [mm] Approx. weight [kg/m] Vacuum [bar]
3 - 07 - 0090 90 102 57 0,5 0,10
3 - 07 - 0100 100 112 63 0,5 0,08
3 - 07 - 0110 110 122 66 0,6 0,06
3 - 07 - 0115 115 127 69 0,6 0,05
3 - 07 - 0120 120 132 76 0,7 0,05
3 - 07 - 0125 125 137 79 0,7 0,04
3 - 07 - 0130 130 142 82 0,7 0,04
3 - 07 - 0140 140 152 88 0,8 0,04
3 - 07 - 0150 150 162 95 0,9 0,03
3 - 07 - 0160 160 172 101 0,9 0,03
3 - 07 - 0165 165 177 104 0,9 0,03
3 - 07 - 0175 175 187 109 1,0 0,03
3 - 07 - 0180 180 192 113 1,1 0,03
3 - 07 - 0190 190 202 120 1,2 0,02
3 - 07 - 0200 200 212 126 1,2 0,02
3 - 07 - 0225 225 237 142 1,3 0,02
3 - 07 - 0230 230 242 145 1,4 0,02
3 - 07 - 0250 250 262 158 1,4 0,01
3 - 07 - 0280 280 292 177 1,6 0,01
3 - 07 - 0300 300 312 189 1,7 0,01
3 - 07 - 0315 315 327 199 1,8 0,01
3 - 07 - 0320 320 332 202 1,8 0,01
3 - 07 - 0350 350 362 221 1,9 0,01
3 - 07 - 0355 355 367 224 2,0 0,01
3 - 07 - 0400 400 412 252 2,1 0,005
3 - 07 - 0450 450 462 284 2,4 0,005
3 - 07 - 0470 470 482 296 2,5 0,005
3 - 07 - 0500 500 512 315 2,6 0,005
3 - 07 - 0560 560 572 352 2,9 0,005
3 - 07 - 0600 600 612 378 3,0 0,005
3 - 07 - 0700 700 712 441 3,5 0,001
3 - 07 - 0800 800 812 504 3,9 0,001
3 - 07 - 0900 900 912 567 4,5 0,001
3 - 07 - 1000 1 000 1012 630 5,2 0,001
3 - 07 - 1100 1 100 1112 693 5,9 0,001
3 - 07 - 1150 1 150 1162 725 6,2 0,001

Tolerance for the parameters contained in this catalog except diameters is 5%. All parameters apply for room temperature. To discharge static electricity, ground the spiral. The TPE layer is standardly placed from the inside of the hose. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. It is possible to make a KLIN hose whether with galvanized spiral or stainless steel spiral for a special request. The standard lengths of the hoses are measured while maximum extension.
