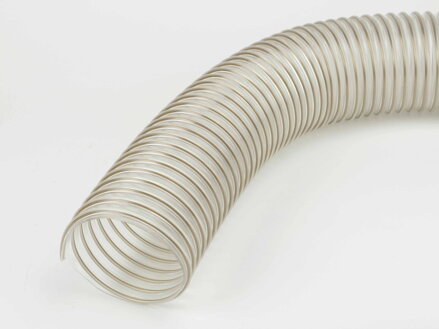

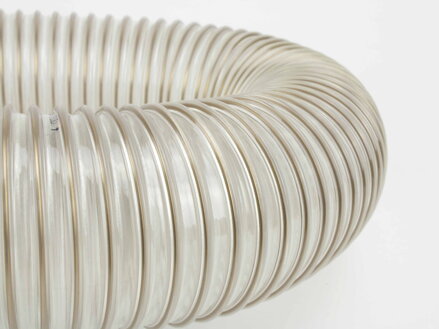

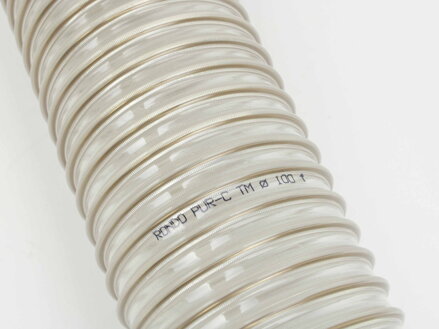

Suction hoses PUR Heavy TM

Suction hoses PUR Heavy TM

Product rating: Not rated yet. Be first!

Your rating:

Liquids Solid Gas

Industrial thick-walled 1,4 mm polyurethane hose resistant to abrasion at higher temperatures, for pressure transport, extraction and extraction, for woodworking, extraction of ceramics, sand, glass particles, granules, pellets, aqueous solutions, gravel, etc., into the environment when working with elevated temperatures up to 110°C.

18,33 € incl. VAT

18,33 € incl. VAT / m

Availability: Shipping in 5-10 days

Producer: RONDO

Characteristics

- solid, liquid and gaseous substances - into the environment when working with elevated temperatures up to 104 ° C - gravity and pneumatic transport of bulk and abrasive material: sawdust, ceramic waste, sand, gravel, glass particles, granules, aqueous solutions, suspensions, sludges, etc. - extraction of hot air, gases, oil vapors, vapors from chemical compounds - for ventilation and dedusting systems - for feeders, pneumatic transport in hoppers and dispensers of hot pellets.

picto - airsolidliquids

Used for media: gas, solid, liquids

abrasion resistant

Abrasion resistant

antistatic

Antistatic (surface resistance ~109 Ω)

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

flammability class Flammability class V-II acc. to UL94
temperature resistance Temperature resistance: -30 ÷ +110°C (short-term 140°C)
smooth inside Smoothed inner wall
flexibility Flexibility ★★★☆☆
lenght

Production length: 20m

Packing system for standard e-shop orders:

DN 20÷105mm - 1pc = up to 20m

DN 106÷130mm - 1pc = up to 10m (for longer than 10m units, contact us for a special transport offer)

DN 131÷500mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 22m of DN 100mm and 8m of DN 300mm - standardly you recieve 20m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 11+11m DN 100mm and 4+4m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production lengths, it is not possible to return the goods.

profile of heavy hoses

Technical parameters

Application

- solid, liquid and gaseous substances

- into the environment when working with elevated temperatures up to 110 ° C

- gravity and pneumatic transport of bulk and abrasive material: sawdust, ceramic waste, sand, gravel, glass particles, granules, aqueous solutions, suspensions, sludges, etc.

- extraction of hot air, gases, oil vapors, vapors from chemical compounds

- for ventilation and dedusting systems

- for feeders, pneumatic transport in hoppers and dispensers of hot pellets.

Wall material PUR (transparent)
Wall thickness 1,4 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
1 - TM - 03 - 0020 20 27 40 0,3 4,0 -0,90
1 - TM - 03 - 0025 25 32 47 0,4 4,0 -0,90
1 - TM - 03 - 0032 32 39 59 0,4 3,5 -0,88
1 - TM - 03 - 0035 35 43 65 0,5 3,2 -0,84
1 - TM - 03 - 0038 38 46 70 0,5 3,0 -0,83
1 - TM - 03 - 0040 40 48 72 0,5 2,9 -0,80
1 - TM - 03 - 0042 42 50 75 0,5 2,8 -0,78
1 - TM - 03 - 0045 45 53 80 0,6 2,8 -0,78
1 - TM - 03 - 0050 50 58 87 0,6 2,7 -0,75
1 - TM - 03 - 0055 55 63 95 0,7 2,6 -0,74
1 - TM - 03 - 0060 60 68 102 0,8 2,5 -0,72
1 - TM - 03 - 0063 63 71 109 0,8 2,4 -0,64
1 - TM - 03 - 0065 65 73 115 0,8 2,4 -0,64
1 - TM - 03 - 0070 70 78 120 0,9 2,2 -0,59
1 - TM - 03 - 0075 75 83 125 0,9 2,0 -0,56
1 - TM - 03 - 0080 80 88 135 1,0 1,8 -0,54
1 - TM - 03 - 0082 82 90 138 1,0 1,7 -0,51
1 - TM - 03 - 0085 85 93 143 1,1 1,7 -0,51
1 - TM - 03 - 0090 90 100 150 1,1 1,6 -0,49
1 - TM - 03 - 0095 95 105 158 1,2 1,5 -0,45
1 - TM - 03 - 0100 100 110 165 1,2 1,4 -0,41
1 - TM - 03 - 0102 102 112 168 1,2 1,4 -0,41
1 - TM - 03 - 0105 105 115 173 1,3 1,3 -0,39
1 - TM - 03 - 0110 110 120 180 1,3 1,3 -0,39
1 - TM - 03 - 0115 115 125 187 1,4 1,2 -0,29
1 - TM - 03 - 0120 120 130 195 1,5 1,2 -0,29
1 - TM - 03 - 0125 125 135 203 1,5 1,2 -0,29
1 - TM - 03 - 0127 127 137 207 1,6 1,2 -0,27
1 - TM - 03 - 0130 130 140 210 1,6 1,2 -0,27
1 - TM - 03 - 0135 135 145 218 1,7 1,1 -0,25
1 - TM - 03 - 0140 140 150 225 1,7 1,0 -0,22
1 - TM - 03 - 0145 145 155 233 1,8 1,0 -0,22
1 - TM - 03 - 0150 150 160 240 1,8 1,0 -0,22
1 - TM - 03 - 0160 160 170 255 2,1 0,9 -0,20
1 - TM - 03 - 0165 165 175 258 2,2 0,7 -0,17
1 - TM - 03 - 0170 170 180 260 2,3 0,7 -0,17
1 - TM - 03 - 0180 180 190 285 2,5 0,7 -0,17
1 - TM - 03 - 0185 185 195 295 2,6 0,7 -0,17
1 - TM - 03 - 0190 190 200 300 2,7 0,7 -0,17
1 - TM - 03 - 0200 200 210 315 2,9 0,7 -0,17
1 - TM - 03 - 0203 203 213 322 2,9 0,6 -0,14
1 - TM - 03 - 0210 210 220 334 3,1 0,6 -0,14
1 - TM - 03 - 0220 220 230 353 3,2 0,6 -0,12
1 - TM - 03 - 0226 226 236 362 3,3 0,5 -0,12
1 - TM - 03 - 0240 240 250 380 3,4 0,5 -0,12
1 - TM - 03 - 0250 250 260 390 3,5 0,5 -0,12
1 - TM - 03 - 0275 275 285 420 3,7 0,4 -0,11
1 - TM - 03 - 0280 280 290 430 3,8 0,4 -0,11
1 - TM - 03 - 0300 300 310 445 4,0 0,4 -0,11
1 - TM - 03 - 0315 315 325 465 4,1 0,4 -0,11
1 - TM - 03 - 0320 320 330 470 4,2 0,4 -0,11
1 - TM - 03 - 0350 350 360 510 4,4 0,4 -0,11
1 - TM - 03 - 0355 355 365 520 4,5 0,3 -0,07
1 - TM - 03 - 0400 400 410 573 4,9 0,3 -0,07
1 - TM - 03 - 0450 450 460 628 5,8 0,2 -0,05
1 - TM - 03 - 0500 500 510 670 7,5 0,2 -0,05

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
