KLIN Hi-temperature D

KLIN Hi-temperature D

Product rating: Not rated yet. Be first!

Your rating:

Gas

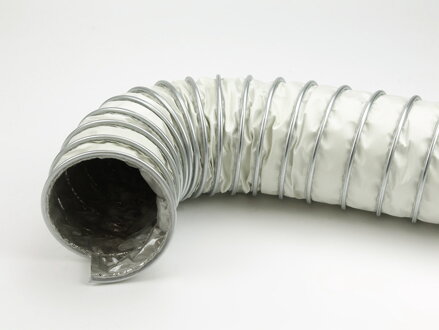

Flexible exhaust hoses KLIN Hi-temperature D for work in extremely high temperatures up to 1100°C.

285,73 € incl. VAT

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - air

Used for gaseous media

Temperature resistance

Temperature resistance up to 1100°C

Flexibility

Flexibility ★★★★☆



Axially compressible Axially compressible 1:3
spark resistant Spark resistant
UV resistant UV radiation resistan
lenght

Standard length: 10m

Packing system for standard e-shop orders:

DN 80÷180mm - 1pc = up to 10m

DN 181÷1150mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the standard length, it is not possible to return the goods.

Heat-resistant hose profile



Technical parameters

Application

exhaust of hot air and gases

for work at extremely high temperatures

in ventilation and exhaust systems

Wall material Aluminized fiberglass fabric, special heat-resistant layer, stainless steel mesh
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner diameter [mm] Outer diameter [mm] Bending radius [mm] Approx. weight [kg/m] Vacuum
[bar]
3 - 16 - 0090 - 3WAR 90 102 102 0,5 0,10
3 - 16 - 0100 - 3WAR 100 112 112 0,6 0,08
3 - 16 - 0110 - 3WAR 110 122 122 0,7 0,06
3 - 16 - 0115 - 3WAR 115 127 127 0,7 0,05
3 - 16 - 0120 - 3WAR 120 132 132 0,8 0,05
3 - 16 - 0125 - 3WAR 125 137 137 0,8 0,04
3 - 16 - 0130 - 3WAR 130 142 142 0,9 0,04
3 - 16 - 0140 - 3WAR 140 152 152 0,9 0,04
3 - 16 - 0150 - 3WAR 150 162 162 1,0 0,03
3 - 16 - 0160 - 3WAR 160 172 172 1,0 0,03
3 - 16 - 0165 - 3WAR 165 177 177 1,1 0,03
3 - 16 - 0175 - 3WAR 175 187 187 1,1 0,03
3 - 16 - 0180 - 3WAR 180 192 192 1,2 0,03
3 - 16 - 0190 - 3WAR 190 202 202 1,3 0,02
3 - 16 - 0200 - 3WAR 200 212 212 1,3 0,02
3 - 16 - 0225 - 3WAR 225 237 237 1,5 0,02
3 - 16 - 0230 - 3WAR 230 242 242 1,6 0,02
3 - 16 - 0250 - 3WAR 250 262 262 1,7 0,01
3 - 16 - 0280 - 3WAR 280 292 292 1,8 0,01
3 - 16 - 0300 - 3WAR 300 312 312 1,9 0,01
3 - 16 - 0315 - 3WAR 315 327 327 2,0 0,01
3 - 16 - 0320 - 3WAR 320 332 332 2,0 0,01
3 - 16 - 0350 - 3WAR 350 362 362 2,1 0,01
3 - 16 - 0355 - 3WAR 355 367 367 2,2 0,01
3 - 16 - 0400 - 3WAR 400 412 412 2,3 0,005
3 - 16 - 0450 - 3WAR 450 462 462 2,6 0,005
3 - 16 - 0470 - 3WAR 470 482 482 2,8 0,005
3 - 16 - 0500 - 3WAR 500 512 512 2,9 0,005
3 - 16 - 0560 - 3WAR 560 572 572 3,1 0,005
3 - 16 - 0600 - 3WAR 600 612 612 3,2 0,005
3 - 16 - 0700 - 3WAR 700 712 712 3,7 0,001
3 - 16 - 0800 - 3WAR 800 812 812 4,2 0,001
3 - 16 - 0900 - 3WAR 900 912 912 4,9 0,001
3 - 16 - 1000 - 3WAR 1 000 1012 1012 5,4 0,001
3 - 16 - 1100 - 3WAR 1 100 1112 1112 5,9 0,001
3 - 16 - 1150 - 3WAR 1 150 1162 1162 6,2 0,001

Tolerance for the parameters contained in this catalog except diameters is 5%. All parameters apply for room temperature. To discharge static electricity, ground the spiral. The TPE layer is standardly placed from the inside of the hose. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. It is possible to make a KLIN hose whether with galvanized spiral or stainless steel spiral for a special request. The standard lengths of the hoses are measured while maximum extension.
