High pressure hose 4-layer braided PVC Krystal

High pressure hose 4-layer braided PVC Krystal

Product rating: Not rated yet. Be first!

Your rating:

Liquids Gas

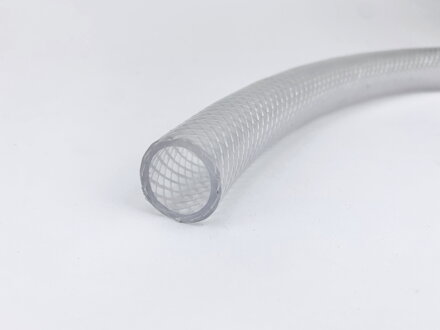

PVC pressure hose with inner braid usable in agriculture for the supply of compressed air or water. Often used as a garden hose. Made of certified FDA PVC granulate (suitable for food industry - usable for drinking water).

0,98 € incl. VAT

0,98 € incl. VAT / m

Availability: Shipping in 2-5 days

Characteristics

picto - airliquids

Used for media: gas, liquids

RESISTANT TO HYDROLISYS

Resistant to hydrolysis

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

temperature resistance Temperature resistance: from -10 ÷ +60°C
resistant to the pressure Pressure resistant
flexibility Flexibility- ★★★★☆
lenght

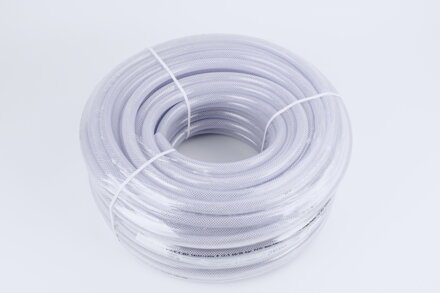

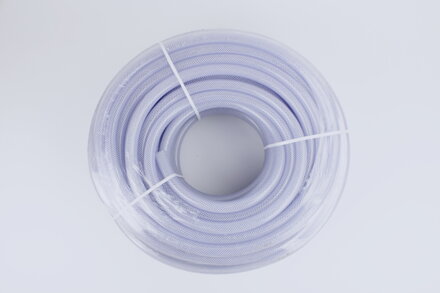

Package length: 25, 50 m
(when ordering a quantity other than the entire package, it is not possible to return the goods)



Technical parameters

Application

- for  liquid and gaseous substances

- can by used as a pressure hose for agricultural machinery

Wall material softed phthalate-free PVC (transparent) with PES net

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Approx.
weight
[kg/m]

Working pressure

[bar]

KF 06 6 10 0,2 20
KF 08 8 14 0,2 20
KF 10 10 15 0,2 20
KF 12,5 12,5 17,5 0,2 20
KF 16 16 19,5 0,2 10
KF 19 19 23 0,3 10
KF 25 25 30 0,3 10
KF 32 32 40 0,4 12

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
