Pressure and vacuum hoses PVC Agro

Pressure and vacuum hoses PVC Agro

Product rating: Not rated yet. Be first!

Your rating:

Liquids Solid Gas

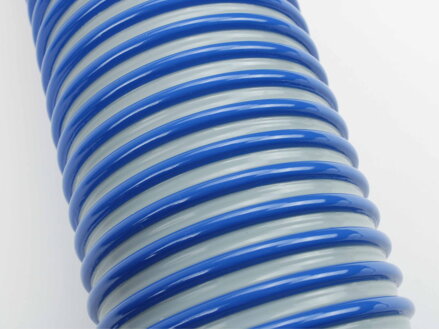

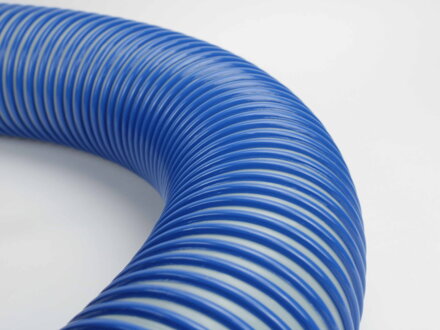

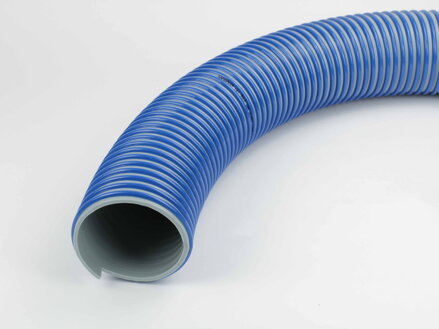

PVC hose used for agriculture and construction. Suction and discharge for machines for agricultural machinery, sewage trucks, septic tank cleaning, wastewater pumping, etc. The hose is reinforced with a PVC spiral. The interior is smooth.

7,26 € incl. VAT

7,26 € incl. VAT / m

Availability: Shipping in 2-5 days

Characteristics

picto - airsolidliquids

Used for media: gas, solid, liquids

RESISTANT TO HYDROLISYS

Resistant to hydrolysis

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

temperature resistance Temperature resistance: from -30 ÷ +60°C

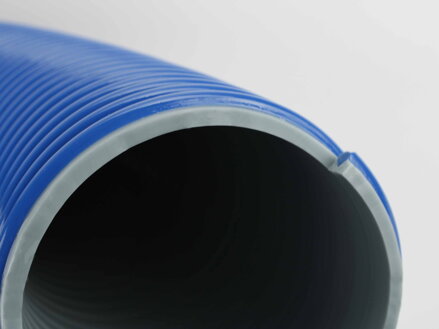

smooth inside Smooth inne wall
resistant to the pressure Pressure and vacuum resistant
flexibility Flexibility- ★★★☆☆
lenght

Package length: 30 m
(when ordering a quantity other than the entire package, it is not possible to return the goods)



Technical parameters

Application

- solid, liquid and gaseous substances

- extraction and transport of fertilizers, sludges, chemicals, air, faeces, organic waste, abrasive particles, sea water, sand

- for seeders, sprayers, sewage trucks with other equipment, etc.

- for gravity and pneumatic transport of abrasive substances

Wall material softed phthalate-free PVC (transparent-green) + white hard PVC
Wall thickness depende on the diameter
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
ASE A 025 25 115 0,5 18 -0,9
ASE A 032 32 130 0,6 -0,9 -0,9
ASE A 035 35 135 0,6 14 -0,9
ASE A 040 40 160 0,7 14 -0,9
ASE A 045 45 180 0,9 13 -0,9
ASE A 050 50 200 1,0 13 -0,9
ASE A 060 60 250 1,3 13 -0,9
ASE A 070 70 280 1,6 10 -0,9
ASE A 075 75 310 1,7 10 -0,9
ASE A 080 80 320 1,8 10 -0,9
ASE A 090 90 375 2,1 8 -0,8
ASE A 102 102 410 2,6 8 -0,8
ASE A 110 110 450 2,9 8 -0,8

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
