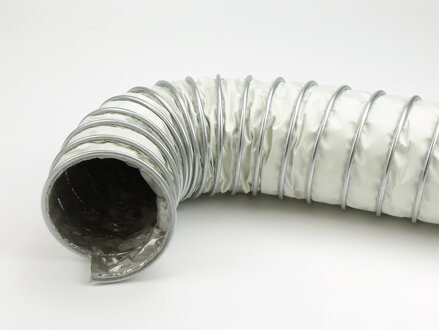

KLIN Hi-temperature C

KLIN Hi-temperature C

Product rating: Not rated yet. Be first!

Your rating:

Gas

Heat resistant flexible hoses KLIN Hi-temperature for exhaust of hot gaseous media, enhanced with a stainless steel mesh inside as additional heat and spark protection. For work in temperatures up to 500°C

87,58 € incl. VAT

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - air

Used for gaseous media

Temperature resistance

Temperature resistance up to 500°C

Flexibility

Flexibility ★★★★★



Axially compressible Axially compressible 1:5
spark resistant Spark resistant
UV resistant UV radiation resistan
lenght

Standard length: 10m

Packing system for standard e-shop orders:

DN 80÷180mm - 1pc = up to 10m

DN 181÷1150mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the standard length, it is not possible to return the goods.

KLIN Hi-temperature C profile



Technical parameters

Application

exhaust of hot air and gases where sparks may occur

for work at elevated temperatures

in ventilation and exhaust systems

Wall material Aluminized fiberglass fabric and stainless steel mesh
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner diameter [mm] Outer diameter [mm] Bending radius [mm] Approx. weight [kg/m] Vacuum
[bar]
3 - 09 - 0060 - 2WAR 60 72 38 0,4 0,20
3 - 09 - 0065 - 2WAR 65 77 41 0,5 0,18
3 - 09 - 0070 - 2WAR 70 82 44 0,5 0,15
3 - 09 - 0075 - 2WAR 75 87 47 0,5 0,12
3 - 09 - 0080 - 2WAR 80 92 50 0,5 0,11
3 - 09 - 0090 - 2WAR 90 102 57 0,5 0,10
3 - 09 - 0100  - 2WAR 100 112 63 0,6 0,08
3 - 09 - 0110 - 2WAR 110 122 69 0,7 0,06
3 - 09 - 0115 - 2WAR 115 127 73 0,7 0,05
3 - 09 - 0120 - 2WAR 120 132 76 0,8 0,05
3 - 09 - 0125 - 2WAR 125 137 79 0,8 0,04
3 - 09 - 0130 - 2WAR 130 142 82 0,9 0,04
3 - 09 - 0140 - 2WAR 140 152 88 0,9 0,04
3 - 09 - 0150 - 2WAR 150 162 95 1,0 0,03
3 - 09 - 0160 - 2WAR 160 172 101 1,0 0,03
3 - 09 - 0165 - 2WAR 165 177 104 1,1 0,03
3 - 09 - 0175 - 2WAR 175 187 109 1,1 0,03
3 - 09 - 0180 - 2WAR 180 192 113 1,2 0,03
3 - 09 - 0190 - 2WAR 190 202 120 1,3 0,02
3 - 09 - 0200 - 2WAR 200 212 126 1,3 0,02
3 - 09 - 0225 - 2WAR 225 237 142 1,5 0,02
3 - 09 - 0230 - 2WAR 230 242 145 1,6 0,02
3 - 09 - 0250 - 2WAR 250 262 158 1,7 0,01
3 - 09 - 0280 - 2WAR 280 292 177 1,8 0,01
3 - 09 - 0300 - 2WAR 300 312 189 1,9 0,01
3 - 09 - 0315 - 2WAR 315 327 199 2,0 0,01
3 - 09 - 0320 - 2WAR 320 332 202 2,0 0,01
3 - 09 - 0350 - 2WAR 350 362 221 2,1 0,01
3 - 09 - 0355 - 2WAR 355 367 224 2,2 0,01
3 - 09 - 0400 - 2WAR 400 412 252 2,3 0,005
3 - 09 - 0450 - 2WAR 450 462 284 2,6 0,005
3 - 09 - 0470 - 2WAR 470 482 296 2,8 0,005
3 - 09 - 0500 - 2WAR 500 512 315 2,9 0,005
3 - 09 - 0560 - 2WAR 560 572 352 3,1 0,005
3 - 09 - 0600 - 2WAR 600 612 378 3,2 0,005
3 - 09 - 0700 - 2WAR 700 712 441 3,7 0,001
3 - 09 - 0800 - 2WAR 800 812 504 4,2 0,001
3 - 09 - 0900 - 2WAR 900 912 567 4,9 0,001
3 - 09 - 1000 - 2WAR 1 000 1012 630 5,4 0,001
3 - 09 - 1100 - 2WAR 1 100 1112 693 5,9 0,001
3 - 09 - 1150 - 2WAR 1 150 1162 725 6,2 0,001

Tolerance for the parameters contained in this catalog except diameters is 5%. All parameters apply for room temperature. To discharge static electricity, ground the spiral. The TPE layer is standardly placed from the inside of the hose. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. It is possible to make a KLIN hose whether with galvanized spiral or stainless steel spiral for a special request. The standard lengths of the hoses are measured while maximum extension.
