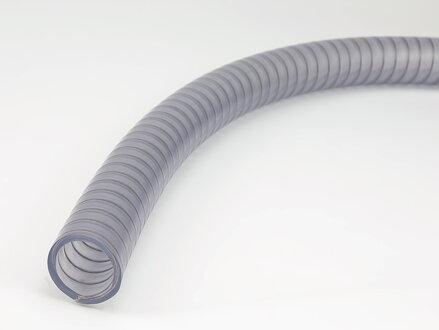

Pressure and vacuum hoses PVC Vacuum

Pressure and vacuum hoses PVC Vacuum

Product rating: 5/5 (1x)

Your rating:

Liquids Solid Gas

Suction and pressure PVC hose for transport of liquids and solids. The wall thickness of the hose is 3-4 mm. Hose with reinforced wall construction. Suitable for pressure and vacuum systems. Extraction and pumping of distilled water etc. For suction of liquids and loose adhesive materials. Hose suitable for chemical and other industries.

3,08 € incl. VAT

3,08 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolidliquids

Used for media: gas, solid, liquids

RESISTANT TO HYDROLISYS

Resistant to hydrolysis

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

temperature resistance Temperature resistance: -5 ÷ +70°C
smooth inside Smooth inner wall
resistant to the pressure Pressure and vacuum resistant
flexibility Flexibility ★★☆☆☆
lenght

Production length: 50m

Packing system for standard e-shop orders:

DN 16÷25mm - 1pc = up to 50m

DN 26÷40mm - 1pc = up to 25m (for longer than 25m units, contact us for a special transport offer)

DN 41÷50mm - 1pc = up to 20m (for longer than 20m units, contact us for a special transport offer)

DN 51÷76mm - 1pc = up to 10m (for longer than 10m units, contact us for a special transport offer)

Example: if ordered 100m of DN 20mm and 12m of DN 60mm - standardly you recieve 50m+50m of DN 100mm and 10m + 2m of DN 60mm. If you need different lenghts (for example 40m+40m+20m DN 100mm and 6m+6m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production lengths, it is not possible to return the goods.

PVC vacuum hose profile



Technical parameters

Application

- solid, liquid and gaseous substances

- extraction of chemicals, air, exhaust gases, chemical fumes, sludges, faeces, organic waste, abrasive particles

- for seeders, sprayers, mixers, automatic fillers and funnels fo etc.

- for gravity and pneumatic transport of adhesives

Wall material softed phthalate-free PVC (transparent)
Wall thickness 3÷4,5 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
2 - 06 - 0016 16 24 4,0 0,2 8,0 -0,96
2 - 06 - 0018 18 26 4,0 0,3 8,0 -0,95
2 - 06 - 0020 20 28 4,0 0,3 7,0 -0,95
2 - 06 - 0022 22 30 4,0 0,4 6,0 -0,95
2 - 06 - 0025 25 34 4,5 0,5 6,0 -0,93
2 - 06 - 0030 30 39 4,5 0,6 5,0 -0,93
2 - 06 - 0032 32 41 4,5 0,7 5,0 -0,92
2 - 06 - 0035 35 44 4,5 0,8 5,0 -0,92
2 - 06 - 0038 38 47 4,5 0,9 4,5 -0,92
2 - 06 - 0040 40 49 4,5 1,0 4,5 -0,92
2 - 06 - 0042 42 51 4,5 1,3 4,0 -0,90
2 - 06 - 0045 45 54 4,5 1,5 4,0 -0,90
2 - 06 - 0050 50 59 4,5 1,6 4,0 -0,90
2 - 06 - 0060 60 69 4,5 1,8 4,0 -0,80
2 - 06 - 0076 76 85 4,5 1,8 4,0 -0,80

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
