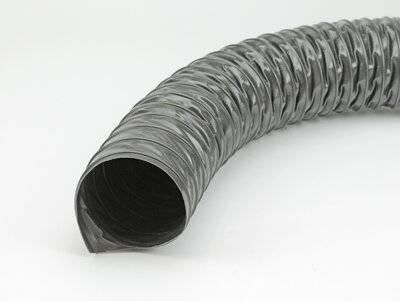

Ducting hoses PVC Foil Lutniovinyl A

Ducting hoses PVC Foil Lutniovinyl A

Product rating: 5/5 (1x)

Your rating:

Solid Gas

Flexible antistatic hose for extracting gases, air, fumes or vapors, with very good resistance to chemicals, microorganisms, hydrolysis and UV radiation, used in agriculture, welding zones and potentially explosive atmospheres.

11,07 € incl. VAT

11,07 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolid

Used for media: gas, solid

antistatic hoses

Antistatic (surface resistance <106 Ω)

RESISTANT TO HYDROLISYS

Resistant to hydrolysis

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

flammability class Incombustible acc. to ISO 6940
temperature resistance Temperature resistance: -10 ÷ +80°C
Axially compressible Axially compressible
UV resistance hoses UV resistant
flexibility Flexibility ★★★★☆
lenght

Production length: 10 m

Packing system for standard e-shop orders:

DN 80÷200mm - 1pc = 10m

DN 210÷400mm - 1pc = 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes.

(when ordering a quantity other than the entire package - 10m, it is not possible to return the goods)

Profile of the hose



Technical parameters

Application

- extraction of air, gases, chemical fumes, vapors, exhaust gases, flue gases, exhaust gases from aggregates, welding fumes

- for ventilation and dedusting systems

- for equipment in dynamic operation

Wall material PES fabric coated with softed phthalate-free antistatic PVC (black)
Wall thickness 0,5 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner diameter [mm] Outer diameter [mm] Bending radius [mm] Approx. Weight [kg/m] Vacuum
[bar]
2 - 05 - 0080 80 84 84 0,6 0,09
2 - 05 - 0085 85 89 89 0,6 0,07
2 - 05 - 0090 90 94 94 0,6 0,06
2 - 05 - 0100 100 104 104 0,7 0,06
2 - 05 - 0110 110 114 114 0,7 0,05
2 - 05 - 0120 120 124 124 0,7 0,05
2 - 05 - 0125 125 129 129 0,7 0,05
2 - 05 - 0127 127 131 131 0,7 0,05
2 - 05 - 0130 130 134 134 0,8 0,05
2 - 05 - 0140 140 144 144 0,8 0,04
2 - 05 - 0145 145 149 149 0,8 0,04
2 - 05 - 0150 150 154 154 0,8 0,04
2 - 05 - 0152 152 156 156 0,8 0,04
2 - 05 - 0155 155 159 159 0,8 0,04
2 - 05 - 0160 160 164 164 0,9 0,03
2 - 05 - 0165 165 169 169 0,9 0,03
2 - 05 - 0170 170 174 174 0,9 0,03
2 - 05 - 0180 180 184 184 0,9 0,03
2 - 05 - 0190 190 194 194 1,0 0,03
2 - 05 - 0200 200 204 204 1,0 0,02
2 - 05 - 0203 203 207 207 1,1 0,02
2 - 05 - 0210 210 214 214 1,1 0,02
2 - 05 - 0220 220 226 226 1,1 0,02
2 - 05 - 0226 226 232 232 1,1 0,02
2 - 05 - 0250 250 256 255 1,2 0,02
2 - 05 - 0270 270 276 276 1,1 0,02
2 - 05 - 0275 275 281 281 1,3 0,02
2 - 05 - 0280 280 286 286 1,4 0,02
2 - 05 - 0300 300 306 306 1,5 0,02
2 - 05 - 0315 315 321 321 1,5 0,01
2 - 05 - 0350 350 356 356 1,6 0,01
2 - 05 - 0400 400 406 406 2,0 0,01

The tolerance for all parameters except diameters is 5%. The tolerance for diameters is max. 2%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter for a special order. The commercial lengths of the hoses are measured while maximum extension. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
