Suction hoses PVC Light

Suction hoses PVC Light

Product rating: Not rated yet. Be first!

Your rating:

Liquids Solid Gas

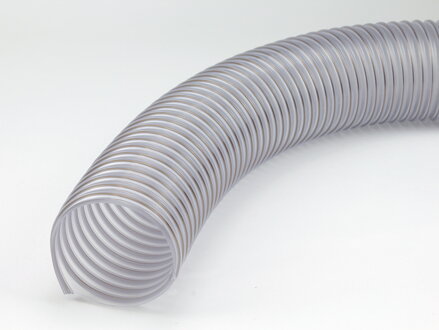

Technical flexible hoses made of softened PVC reinforced with galvanized spring steel wire with smoothed internal wall and very good chemical resistance, used for transport of biological waste, grass, leaves, wastewater, sewage and sewage sludge, exhaust of chemical fumes and vapors, polluted air, exhaust fumes, welding smoke.

6,03 € incl. VAT

6,03 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolidliquids

Used for media: gas, solids, liquids

RESISTANT TO HYDROLISYS

Resistant to hydrolysis

chemical resistant

Good chemical resistance

Table of chemical resistance HERE

flammability class Flammability class V-I acc. to UL94
temperature resistance Temperature resistance: from -5 ÷ +70°C
smooth inside Smoothed inner wall
flexibility Flexibility ★★★★☆
lenght

Package length: 20 m
(when ordering a quantity other than the entire package, it is not possible to return the goods)

profile of the hoses



Technical parameters

Application

for ventilation, exhaust of chemical vapors, exhaust fumes, polluted air, airflow, transport of organic substances, produce, biological waste like grass, leaves, animal feed, etc.,

for street cleaning machines, road cleaning vehicles, vacuum cleaners for leaves, etc.

for ventilation and dedusting systems

for equipment in static or slightly dynamic operation

Wall material softened phthalate-free PVC (transparent)
Wall thickness 0,7 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
2 - 01 - 0020 20 25 25 0,28 0,7 0,69
2 - 01 - 0025 25 30 30 0,31 0,7 0,64
2 - 01 - 0032 32 37 37 0,34 0,6 0,54
2 - 01 - 0035 35 41 41 0,35 0,5 0,51
2 - 01 - 0038 38 44 44 0,36 0,5 0,49
2 - 01 - 0040 40 46 46 0,37 0,5 0,44
2 - 01 - 0042 42 48 48 0,38 0,4 0,39
2 - 01 - 0045 45 51 51 0,39 0,4 0,39
2 - 01 - 0050 50 56 56 0,41 0,4 0,34
2 - 01 - 0055 55 61 61 0,43 0,3 0,29
2 - 01 - 0060 60 66 66 0,46 0,3 0,29
2 - 01 - 0063 63 69 69 0,48 0,3 0,25
2 - 01 - 0065 65 72 72 0,51 0,3 0,25
2 - 01 - 0070 70 76 76 0,54 0,2 0,25
2 - 01 - 0075 75 82 82 0,58 0,2 0,25
2 - 01 - 0080 80 88 88 0,67 0,2 0,20
2 - 01 - 0082 82 90 90 0,68 0,2 0,15
2 - 01 - 0085 85 93 93 0,70 0,2 0,15
2 - 01 - 0090 90 98 98 0,74 0,2 0,15
2 - 01 - 0095 95 103 103 0,76 0,2 0,15
2 - 01 - 0100 100 108 108 0,81 0,2 0,15
2 - 01 - 0102 102 110 110 0,81 0,2 0,15
2 - 01 - 0105 105 113 113 0,82 0,2 0,15
2 - 01 - 0110 110 118 118 0,84 0,2 0,15
2 - 01 - 0115 115 123 123 0,89 0,2 0,10
2 - 01 - 0120 120 128 128 0,93 0,2 0,10
2 - 01 - 0125 125 133 133 0,96 0,2 0,10
2 - 01 - 0127 127 135 135 0,97 0,2 0,10
2 - 01 - 0130 130 138 138 0,98 0,2 0,10
2 - 01 - 0135 135 143 143 1,03 0,1 0,10
2 - 01 - 0140 140 148 148 1,08 0,1 0,10
2 - 01 - 0145 145 153 153 1,12 0,1 0,10
2 - 01 - 0150 150 158 158 1,16 0,1 0,10
2 - 01 - 0160 160 168 168 1,23 0,1 0,10
2 - 01 - 0165 165 173 173 1,27 0,1 0,10
2 - 01 - 0170 170 178 188 1,30 0,1 0,10
2 - 01 - 0180 180 188 188 1,38 0,1 0,10
2 - 01 - 0185 185 196 196 1,42 0,1 0,10
2 - 01 - 0190 190 203 203 1,46 0,1 0,10
2 - 01 - 0200 200 208 208 1,53 0,1 0,10
2 - 01 - 0203 203 211 211 1,56 0,1 0,05
2 - 01 - 0210 210 218 218 1,62 0,1 0,05
2 - 01 - 0220 220 228 228 1,71 0,1 0,05
2 - 01 - 0226 226 234 234 1,76 0,1 0,05
2 - 01 - 0240 240 248 248 1,88 0,1 0,05
2 - 01 - 0250 250 258 258 1,91 0,1 0,05
2 - 01 - 0275 275 283 283 2,16 0,1 0,05
2 - 01 - 0280 280 288 288 2,20 0,1 0,05
2 - 01 - 0300 300 308 308 2,41 0,1 0,05
2 - 01 - 0315 315 323 323 2,62 0,1 0,05
2 - 01 - 0320 320 328 328 2,75 0,1 0,05
2 - 01 - 0350 350 358 358 2,93 0,1 0,05
2 - 01 - 0355 355 363 363 3,02 0,1 0,05
2 - 01 - 0400 400 408 408 3,34 0,1 0,05
2 - 01 - 0450 450 460 460 6,00 0,1 0,05
2 - 01 - 0500 500 510 510 7,50 0,1 0,05

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
