Metal hoses type C

Metal hoses type C

Product rating: Not rated yet. Be first!

Your rating:

Solid Gas

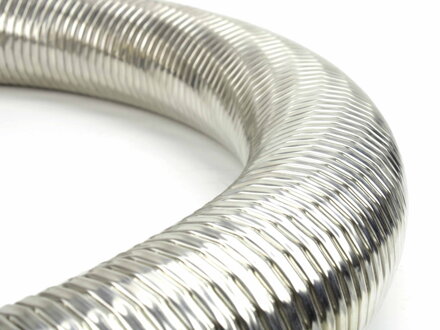

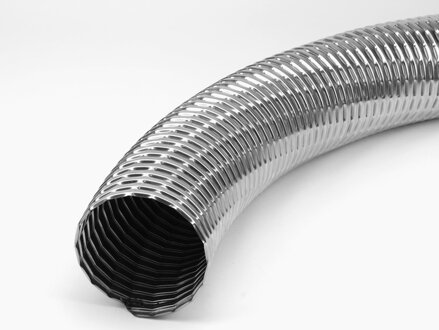

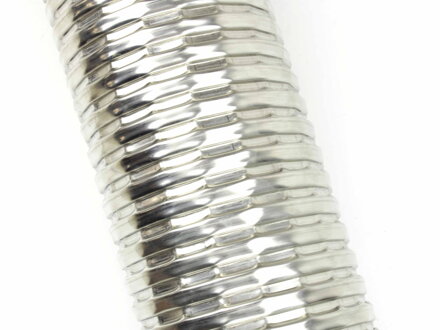

Metal hose made of stainless steel without sealing. Perfect as cover hose, cable cover etc. Used also as exhaust hose for hot fumes while using exhaust fan.

42,68 € incl. VAT

42,68 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolid

Used for media: gas, solid

abrasion resistant

Abrasion resistant

durability

Mechanically durable

temperature resistance Temperature resistance: up to +650°C
flexibility Flexibility ★★★★☆
lenght

Production length: 10m

Packing system for standard e-shop orders:

DN 18÷100mm - 1pc = up to 10m

DN 101÷337mm - 1pc = up to 2m (for longer than 2m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 2m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 2m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 1+1m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production length, it is not possible to return the goods.

Stainless steel hose



Technical parameters

Application

for gravitational transport of loose abrasives

as cover hose, cable cover etc.

in potentially explosive areas

for work at high temperatures

in ventilation systems

for extraction of hot gases

Note! Polygonal construction of the hose doesn't provide 100% tightness. For exhaust of fumes we recommend using a diameter three times larger than the diameter of the outlet and using the exhaust fan to avoid gas escape.

Wall material Stainless steel profile
Sealing none
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog

Inner diameter
[mm]

Outer diameter [mm]

Bending radius
[mm]

Approx. weight
[kg/m]

5 - 01 - 0050 - 2

50

60

160

0,8

5 - 01 - 0055 - 2

55

65

180

0,9

5 - 01 - 0060 - 2

60

70

215

1,0

5 - 01 - 0065 - 2

65

75

230

1,1

5 - 01 - 0070 - 2

70

80

240

1,2

5 - 01 - 0075 - 2

75

85

255

1,3

5 - 01 - 0080 - 2

80

90

270

1,3

5 - 01 - 0085 - 2

85

95

275

1,5

5 - 01 - 0090 - 2

90

100

280

1,9

5 - 01 - 0095 - 2

95

105

290

2,0

5 - 01 - 0100 - 2

100

110

300

2,0

5 - 01 - 0105 - 2

105

115

315

2,1

5 - 01 - 0110 - 2

110

120

330

2,2

5 - 01 - 0112 - 2

112

122

340

2,3

5 - 01 - 0120 - 2

120

130

380

2,4

5 - 01 - 0124 - 2

124

134

390

2,5

5 - 01 - 0125 - 2

125

135

400

2,5

5 - 01 - 0130 - 2

130

140

410

2,9

5 - 01 - 0135 - 2

135

145

420

3,0

5 - 01 - 0140 - 2

140

150

440

3,1

5 - 01 - 0146 - 2

146

156

450

3,2

5 - 01 - 0150 - 2

150

160

460

3,4

5 - 01 - 0158 - 2

158

168

480

3,4

5 - 01 - 0160 - 2

160

170

490

3,6

5 - 01 - 0168 - 2

168

178

500

3,9

5 - 01 - 0180 - 2

180

190

545

4,0

5 - 01 - 0202 - 2

202

212

560

5,5

5 - 01 - 0225 - 2

225

235

630

6,2

5 - 01 - 0250 - 2

250

260

700

6,9

5 - 01 - 0280 - 2

280

290

760

7,5

5 - 01 - 0300 - 2

300

310

850

8,2

5 - 01 - 0337 - 2

337

347

910

8,8

Tolerance for the parameters contained in this catalog is approx. 5% (despite diameters). All parameters apply for room temperature. To discharge static electricity, ground the spiral. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. The standard lengths of the hoses are measured while maximum extension. In case of cutting metal hoses, ends must be secured against unwinding (e.g. by welding). Note! Polygonal construction of the hose doesn't provide 100% tightness. For exhaust of fumes we recommend using a diameter three times larger than the diameter of the outlet and using the exhaust fan to avoid gas escape.
