Metal hoses type B1

Metal hoses type B1

Product rating: Not rated yet. Be first!

Your rating:

Solid Gas

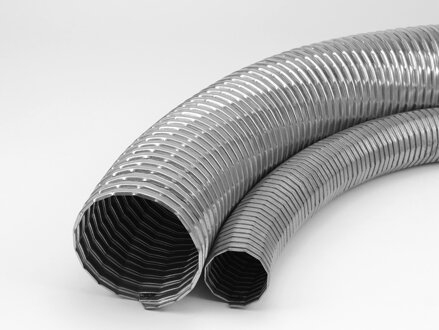

Metal hose made of galvanized steel with fiberglass sealing. Perfect as cover hose, cable cover etc. Used also as exhaust hose for hot fumes while using exhaust fan.

15,74 € incl. VAT

15,74 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolid

Used for media: gas, solid

abrasion resistant

Abrasion resistant

durability

Mechanically durable

temperature resistance Temperature resistance: up to +500°C
flexibility Flexibility ★★★☆☆
lenght

Production length: 10m

Packing system for standard e-shop orders:

DN 18÷100mm - 1pc = up to 10m

DN 101÷337mm - 1pc = up to 2m (for longer than 2m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 2m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 2m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 1+1m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production length, it is not possible to return the goods.

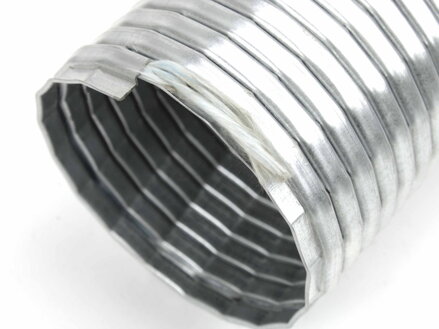

Metal Hose profile with fiberglass sealing



Technical parameters

Application

for gravitational transport of loose abrasives

as cover hose, cable cover etc.

in potentially explosive areas

for work at high temperatures

in ventilation or dedusting systems

in industrial vacuum cleaners

in wood industry, transport of abrasive particles

for extraction of hot gases

Note! Polygonal construction of the hose doesn't provide 100% tightness. For exhaust of fumes we recommend using a diameter three times larger than the diameter of the outlet and using the exhaust fan to avoid gas escape.

Wall material galvanized steel profile
Sealing fiberglass
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner diameter [mm] Outer diameter
[mm]
Bending radius [mm] Approx. weight
[kg/m]
Steel profile thickness [mm]
5 - 01 - 0018- 1 UW 18 22 120 0,2 0,2
5 - 01 - 0020- 1 UW 20 24 130 0,2 0,2
5 - 01 - 0022- 1 UW 22 26 140 0,2 0,2
5 - 01 - 0026- 1 UW 26 30 160 0,3 0,2
5 - 01 - 0028- 1 UW 28 32 170 0,3 0,2
5 - 01 - 0030- 1 UW 30 34 180 0,3 0,2
5 - 01 - 0032- 1 UW 32 36 190 0,3 0,2
5 - 01 - 0035- 1 UW 35 39 205 0,3 0,2
5 - 01 - 0038- 1 UW 38 42 220 0,4 0,2
5 - 01 - 0040- 1 UW 40 44 230 0,4 0,2
5 - 01 - 0045- 1 UW 45 49 255 0,4 0,2
5 - 01 - 0048- 1 UW 48 52 270 0,4 0,2
5 - 01 - 0050- 1 UW 50 60 160 0,8 0,4
5 - 01 - 0055- 1 UW 55 65 180 0,9 0,4
5 - 01 - 0060- 1 UW 60 70 215 1,0 0,4
5 - 01 - 0065- 1 UW 65 75 230 1,1 0,4
5 - 01 - 0070- 1 UW 70 80 240 1,2 0,4
5 - 01 - 0075- 1 UW 75 85 255 1,3 0,4
5 - 01 - 0080- 1 UW 80 90 270 1,3 0,4
5 - 01 - 0085- 1 UW 85 95 275 1,5 0,4
5 - 01 - 0090- 1 UW 90 100 280 1,9 0,4
5 - 01 - 0095- 1 UW 95 105 290 2,0 0,4
5 - 01 - 0100- 1 UW 100 110 300 2,0 0,4
5 - 01 - 0105- 1 UW 105 115 315 2,1 0,4
5 - 01 - 0110- 1 UW 110 120 330 2,2 0,4
5 - 01 - 0112- 1 UW 112 122 340 2,3 0,4
5 - 01 - 0120- 1 UW 120 130 380 2,4 0,4
5 - 01 - 0124- 1 UW 124 134 390 2,5 0,4
5 - 01 - 0125- 1 UW 125 135 400 2,5 0,4
5 - 01 - 0130- 1 UW 130 140 410 2,9 0,4
5 - 01 - 0135- 1 UW 135 145 420 3,0 0,4
5 - 01 - 0140- 1 UW 140 150 440 3,1 0,4
5 - 01 - 0146- 1 UW 146 156 450 3,2 0,4
5 - 01 - 0150- 1 UW 150 160 460 3,4 0,4
5 - 01 - 0158- 1 UW 158 168 480 3,4 0,4
5 - 01 - 0160- 1 UW 160 170 490 3,6 0,4
5 - 01 - 0168- 1 UW 168 178 500 3,9 0,4
5 - 01 - 0180- 1 UW 180 190 545 4,0 0,4
5 - 01 - 0202- 1 UW 202 212 560 5,5 0,4
5 - 01 - 0225- 1 UW 225 235 630 6,2 0,4
5 - 01 - 0250- 1 UW 250 260 700 6,9 0,4
5 - 01 - 0280- 1 UW 280 290 760 7,5 0,4
5 - 01 - 0300- 1 UW 300 310 850 8,2 0,4
5 - 01 - 0337- 1 UW 337 347 910 8,8 0,4

Tolerance for the parameters contained in this catalog is approx. 5% (despite diameters). All parameters apply for room temperature. To discharge static electricity, ground the spiral. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. The standard lengths of the hoses are measured while maximum extension. In case of cutting metal hoses, ends must be secured against unwinding (e.g. by welding). Note! Polygonal construction of the hose doesn't provide 100% tightness. For exhaust of fumes we recommend using a diameter three times larger than the diameter of the outlet and using the exhaust fan to avoid gas escape.
