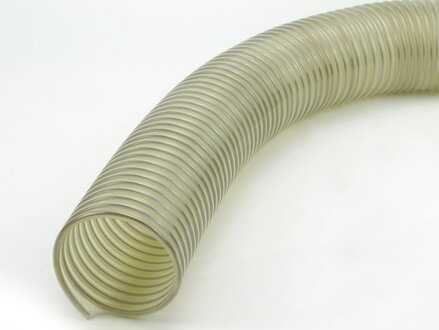

Suction hoses PUR Super Heavy MB

Suction hoses PUR Super Heavy MB

Product rating: 5/5 (2x)

Your rating:

Liquids Solid Gas

Polyurethane thick-walled hose with wall thickness 2,1 mm with high abrasion resistance, for very intensive transport of abrasive coarse-grained material.

21,53 € incl. VAT

21,53 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolidliquids

Used for media: gas, solid, liquids

abrasion resistant

Abrasion resistant

food

Certificate of Health Quality. PUR MB hoses meet the requirements of EU Directive 2002/72 / EC, Regulation PE 1935/2004 regarding organoleptic characteristics and global migration for A, B, C model fluids. Note! Do not use for the transport of fats

antistatic

Antistatic (surface resistance <109 Ω)

chemical resistant

Table of chemical resistance HERE

flammability class Flammability class V-II acc. to UL94
temperature resistance Temperature resistance: -30 ÷ +90°C (short-term 125°C)
smooth inside Smoothed inner wall
flexibility Flexibility ★★☆☆☆
lenght

Production length: 20m

Packing system for standard e-shop orders:

DN 25÷64mm - 1pc = up to 20m

DN 65÷82mm - 1pc = up to 10m (for longer than 10m units, contact us for a special transport offer)

DN 83÷500mm - 1pc = up to 2m (for longer than 2m units, contact us for a special transport offer)

Example: if ordered 22m of DN 50mm and 2m of DN 300mm - standardly you recieve 20m+2m of DN 50mm and 2m of DN 300mm. If you need different lenghts (for example 11+11m DN 100mm and 1+1m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production length, it is not possible to return the goods.

hose profile

Technical parameters

Application

for the transport of bulk materials

extraction of abrasive particles: wood dust, powders, sawdust, pollen, granules, sand, cement, etc.

extraction of air, oil vapors, gases

for ventilation and dedusting systems

for equipment in static or softly dynamic operation

Wall material PUR (transparent)
Wall thickness 2,1 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
1 - MB - 04 - 0025 25 32 200 0,6 4,0 0,9
1 - MB - 04 - 0032 32 40 210 0,7 4,0 0,9
1 - MB - 04 - 0035 35 43 220 0,8 4,0 0,9
1 - MB - 04 - 0038 38 46 230 0,8 4,0 0,9
1 - MB - 04 - 0040 40 48 240 0,9 4,0 0,9
1 - MB - 04 - 0042 42 50 250 0,9 4,0 0,9
1 - MB - 04 - 0045 45 53 260 1,0 4,0 0,9
1 - MB - 04 - 0050 50 58 270 1,1 4,0 0,9
1 - MB - 04 - 0055 55 63 290 1,2 3,7 0,9
1 - MB - 04 - 0060 60 68 310 1,3 3,5 0,9
1 - MB - 04 - 0063 63 71 340 1,3 3,2 0,9
1 - MB - 04 - 0065 65 75 340 1,4 3,2 0,9
1 - MB - 04 - 0070 70 80 380 1,5 3,1 0,9
1 - MB - 04 - 0075 75 85 420 1,6 2,9 0,9
1 - MB - 04 - 0080 80 90 440 1,7 2,7 0,9
1 - MB - 04 - 0082 82 92 450 1,8 2,5 0,9
1 - MB - 04 - 0085 85 95 480 1,8 2,5 0,8
1 - MB - 04 - 0090 90 100 500 1,9 2,3 0,8
1 - MB - 04 - 0095 95 105 540 2,0 2,1 0,8
1 - MB - 04 - 0100 100 110 600 2,1 1,9 0,8
1 - MB - 04 - 0102 102 112 610 2,2 1,9 0,8
1 - MB - 04 - 0105 105 115 620 2,2 1,8 0,8
1 - MB - 04 - 0110 110 120 650 2,3 1,8 0,8
1 - MB - 04 - 0115 115 125 690 2,4 1,6 0,8
1 - MB - 04 - 0120 120 130 730 2,5 1,6 0,8
1 - MB - 04 - 0125 125 135 740 2,6 1,6 0,8
1 - MB - 04 - 0127 127 137 760 2,6 1,6 0,7
1 - MB - 04 - 0130 130 140 780 2,7 1,6 0,7
1 - MB - 04 - 0135 135 145 800 2,8 1,5 0,7
1 - MB - 04 - 0140 140 150 820 2,9 1,5 0,7
1 - MB - 04 - 0145 145 155 830 3,0 1,4 0,7
1 - MB - 04 - 0150 150 160 850 3,1 1,4 0,8
1 - MB - 04 - 0160 160 170 910 3,7 1,3 0,7
1 - MB - 04 - 0165 165 175 930 3,9 1,1 0,7
1 - MB - 04 - 0170 170 180 940 4,0 1,1 0,6
1 - MB - 04 - 0180 180 190 960 4,3 1,1 0,6
1 - MB - 04 - 0185 185 195 1000 4,5 1,0 0,5
1 - MB - 04 - 0190 190 200 1020 4,6 1,0 0,5
1 - MB - 04 - 0200 200 210 1250 5,0 1,0 0,4
1 - MB - 04 - 0203 203 213 1630 5,1 0,9 0,3
1 - MB - 04 - 0210 210 220 1680 5,3 0,9 0,3
1 - MB - 04 - 0220 220 230 1760 5,6 0,9 0,3
1 - MB - 04 - 0226 226 236 1810 5,6 0,8 0,3
1 - MB - 04 - 0240 240 250 1920 5,8 0,8 0,3
1 - MB - 04 - 0250 250 260 2000 6,0 0,8 0,3
1 - MB - 04 - 0275 275 285 2200 6,2 0,6 0,3
1 - MB - 04 - 0280 280 290 2520 6,4 0,6 0,3
1 - MB - 04 - 0300 300 310 2700 6,7 0,6 0,3
1 - MB - 04 - 0315 315 325 2840 7,0 0,6 0,3
1 - MB - 04 - 0320 320 330 2880 7,0 0,5 0,3
1 - MB - 04 - 0350 350 360 3500 7,4 0,5 0,3
1 - MB - 04 - 0355 355 365 3550 7,5 0,5 0,3
1 - MB - 04 - 0400 400 410 4000 8,0 0,5 0,3
1 - MB - 04 - 0450 450 460 4500 9,1 0,5 0,3
1 - MB - 04 - 0500 500 510 5000 11,0 0,4 0,2

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
