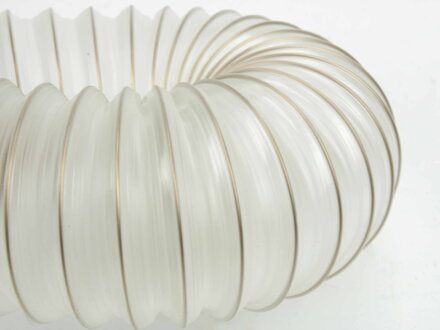

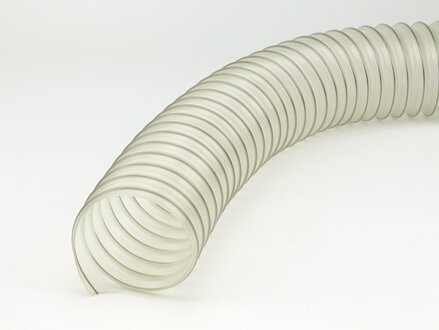

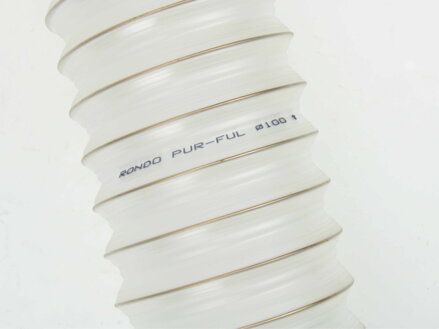

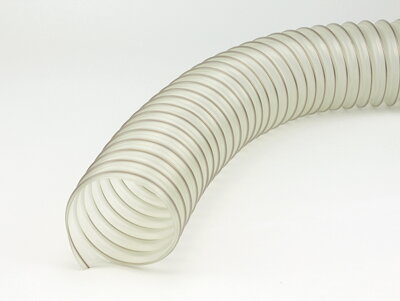

Ducting hoses PUR Foil Ultra Light MB

Ducting hoses PUR Foil Ultra Light MB

Product rating: 5/5 (3x)

Your rating:

Solid Gas

Very flexible polyurethane hoses for the extraction of fine abrasive loose particles as sawdust, wood dust, powders etc., used in CNC machines in woodworking industry, ventilation and deducting systems, gas extraction and many others.

5,29 € incl. VAT

5,29 € incl. VAT / m

Availability: Shipping in 2-5 days

Producer: RONDO

Characteristics

picto - airsolid

Used for media: gas, solids

abrasion resistant

Abrasion resistant

antistatic

Antistatic (surface resistance ~109 Ω)

chemical resistant

Table of chemical resistance HERE

Flammability class V-II acc. to UL94 Flammability class V-II acc. to UL94
temperature resistance Temperature resistance: -30 ÷ + 90°C (short-term 125°C)
axially compressible Axially compressible
flexibility Flexibility ★★★★★
lenght

Production length: 10m

Packing system for standard e-shop orders:

DN 80÷200mm - 1pc = up to 10m

DN 201÷400mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer)

Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes.

Note! When ordering a quantity other than the production length, it is not possible to return the goods.

profile of hose



Technical parameters

Application

for the transport of bulk materials

extraction of fine abrasive particles: wood dust, powders, sawdust, pollen, etc.

extraction of air, oil vapors, gases

for ventilation and dedusting systems

for CNC equipment in dynamic operation

Wall material PUR (transparent)
Wall thickness 0,35-0,4 mm between spirals
Instructions for using hoses

HERE

Parameters of all produced diameters

Product catalog Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Vacuum
[bar]
1 - MB - 16 - 0032 32 36 36 0,3 -0,22
1 - MB - 16 - 0035 35 39 39 0,3 -0,21
1 - MB - 16 - 0040 40 44 46 0,3 -0,2
1 - MB - 16 - 0050 50 54 54 0,3 -0,16
1 - MB - 16 - 0060 60 64 64 0,3 -0,13
1 - MB - 16 - 0063 63 67 67 0,3 -0,13
1 - MB - 16 - 0070 70 74 74 0,3 -0,1
1 - MB - 16 - 0080 80 84 84 0,4 -0,09
1 - MB - 16 - 0085 85 89 89 0,4 -0,07
1 - MB - 16 - 0090 90 94 94 0,4 -0,06
1 - MB - 16 - 0100 100 104 104 0,4 -0,06
1 - MB - 16 - 0110 110 114 114 0,4 -0,05
1 - MB - 16 - 0120 120 124 124 0,5 -0,05
1 - MB - 16 - 0125 125 129 129 0,5 -0,05
1 - MB - 16 - 0127 127 131 131 0,5 -0,05
1 - MB - 16 - 0130 130 134 134 0,5 -0,05
1 - MB - 16 - 0140 140 144 144 0,5 -0,04
1 - MB - 16 - 0145 145 149 149 0,6 -0,04
1 - MB - 16 - 0150 150 154 154 0,6 -0,04
1 - MB - 16 - 0152 152 156 156 0,6 -0,04
1 - MB - 16 - 0155 155 159 159 0,6 -0,04
1 - MB - 16 - 0160 160 164 164 0,6 -0,03
1 - MB - 16 - 0165 165 169 169 0,6 -0,03
1 - MB - 16 - 0170 170 174 174 0,7 -0,03
1 - MB - 16 - 0180 180 184 184 0,7 -0,03
1 - MB - 16 - 0190 190 194 194 0,7 -0,03
1 - MB - 16 - 0200 200 204 204 0,8 -0,02
1 - MB - 16 - 0203 203 207 207 0,8 -0,02
1 - MB - 16 - 0210 210 214 214 0,8 -0,02
1 - MB - 16 - 0220 220 226 226 0,8 -0,02
1 - MB - 16 - 0226 226 232 232 0,9 -0,02
1 - MB - 16 - 0250 250 256 255 0,9 -0,02
1 - MB - 16 - 0270 270 276 276 1,0 -0,02
1 - MB - 16 - 0275 275 281 281 1,0 -0,02
1 - MB - 16 - 0280 280 286 286 1,0 -0,02
1 - MB - 16 - 0300 300 306 306 1,1 -0,02

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C). It is possible to produce a hose of non-standard diameter, in the required color or with your own print on special order. The commercial lengths of the hoses are measured in the maximum expanded state. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
